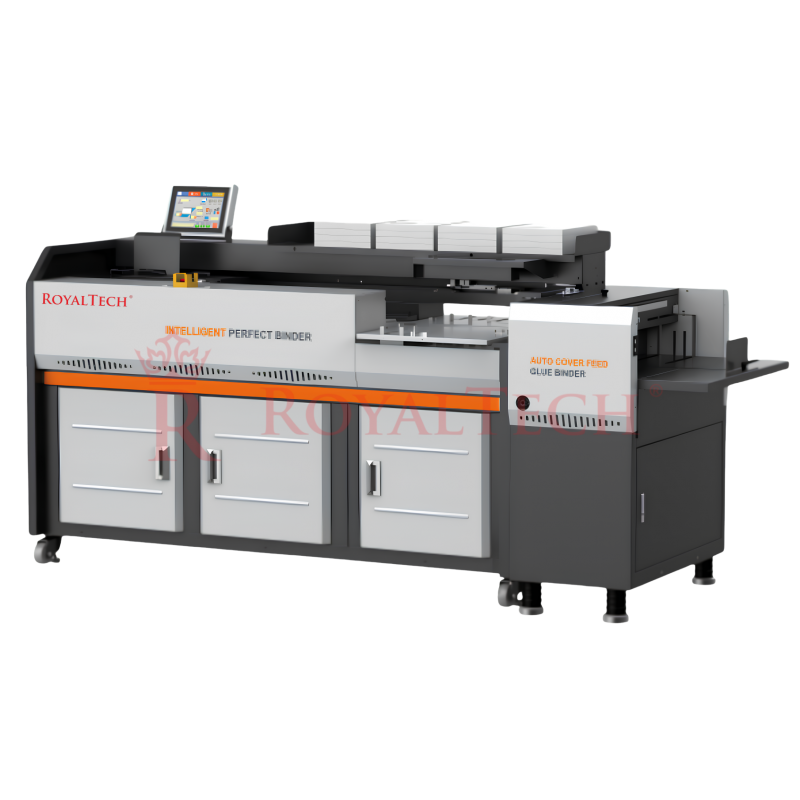

| Model | ROYALTECH RTH20F (A3) |
| Binding Length | 120 – 440 (mm) |
| Binding Thickness | 1 - 60 (mm) |
| Binding Height | 135 – 297 (mm) |
| Max. Cover Size | 660 x 440 (mm) |
| Cover Thickness | 120 – 300 (gsm) |
| Cover Stacker Capacity | 98mm |
| Binding Speed | 350 - 400 books / h |
| Pre-heating | 45 min |
| Glue Roller | Three + Side Glue |
| Milling Cutter | 20-tooth large disc milling + 2 milling |
| Auto Cover Feeding | Yes |
| Auto Creaser | Yes |
| Side Glue Function | Yes |
| Auto Book Collect | No |
| Display Mode | 7” Touch Screen |
| Power Supply | 220V / 50Hz |
| Dimensions (LxDxH) | 1985 x 710 x 1260 (mm) |
| Weight | 300kg |
