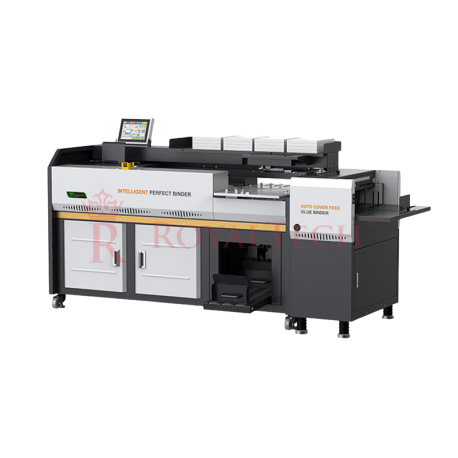

| MODEL | ROYALTECH RTH200F (A3) |
| Binding Length (Manual Mode) | 120 – 425 (mm) |
| Binding Length (Auto Mode) | 120 – 320 (mm) |
| Binding Thickness | 0.2 – 60 (mm) |
| Binding Height | 135 – 297 (mm) |
| Max. Cover Size | 660 x 330 (mm) |
| Cover Thicknesss | 120 – 300 (gsm) |
| Cover Stacker Capacity | 98mm |
| Min. Creasing Thickness | 2mm |
| Max. Creasing Thickness | 60mm |
| Binding Speed | 350 - 500 books / h |
| Pre-heating | 45 min |
| Glue Roller | Three + Side Glue |
| Milling Cutter | 30-tooth large disc milling + 4 milling |
| Auto Cover Feeding | Yes |
| Auto Creaser | Yes |
| Side Glue Function | Yes |
| Auto Book Dropping | Yes |
| Safety Cover | Yes |
| Display Mode | 7" Touch Screen |
| Power Supply | 220 V / 50HZ |
| Dimensions (LxDxH) | 2203 x 968 x 1135 (mm) |
| Weight | 500kg |
