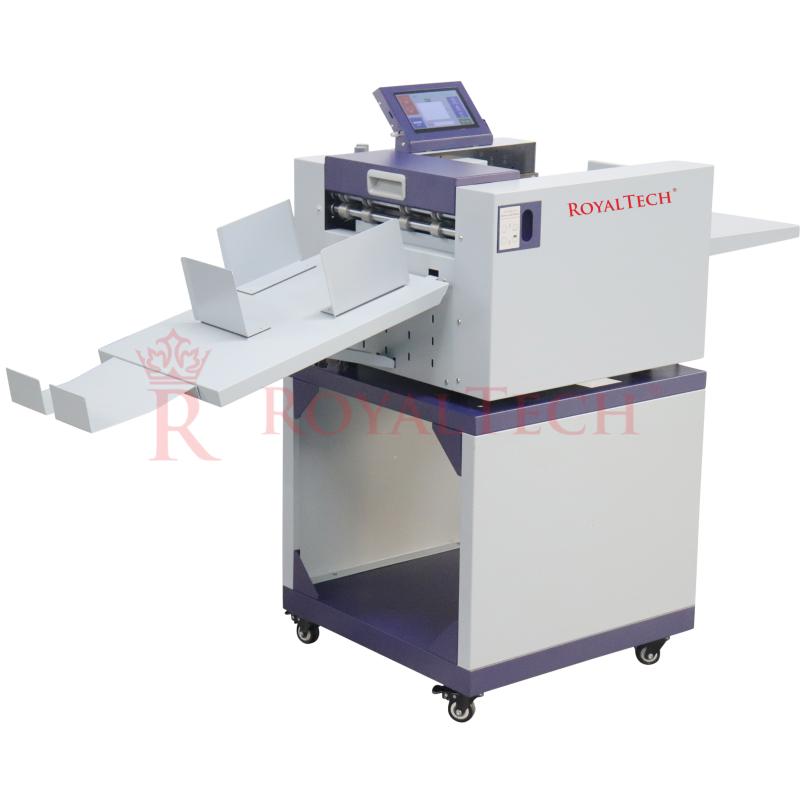

| Model | ROYALTECH RTDC765A |
| Paper Width | 210 – 330 (mm) |
| Feed Length | 150 – 660 (mm) |
| Paper Thickness (Creasing) | 70 – 450 (gsm) |
| Paper Thickness (Perforate) | 70 – 300 (gsm) |
| Creasing Speed | 4000 sheets / h (A4 Single Line) |
| Creasing Line Width | 1.0mm |
| Program System | 30 sets |
| Max. Crease / Perforate Line Setting | 36 |
| Paper Feeding Mode | Vacuum feeding |
| Paper Feeding Tray Capacity | 90mm |
| Display Mode | 7” Touch Screen |
| Crease Accuracy | ± 0.2mm |
| Power Supply | 220V |
| Dimensions (LxDxH) | 1640 x 560 x 430 (mm) |
| Weight | 75kg |
